Product information:

Series: single circuit inching self-locking
Type: one switch single control switch
Start mode: button switch
Panel material: ABS
Electric life: 100000 (10000 times)
Material No.: ABS plastic

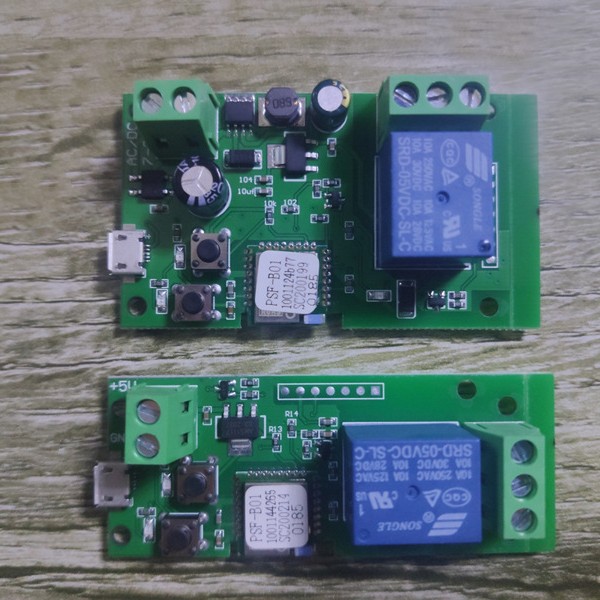

Model: 12V single circuit inching self-locking
Size: 70.5mm long x 27.4mm wide x 23mm high
Main chip: WIFI module
Working voltage: DC 5V-12V
Features: stupid wifi control module, without programming, only needs to download an APP and link to WIFI to control its own cloud. As long as the module is connected to WIFI, the mobile phone can be controlled anywhere in the country.

Function:
1 Default inching function: the mobile phone can be pressed to turn off the relay quickly (the default interval is 1s), and it also has the timing sharing function

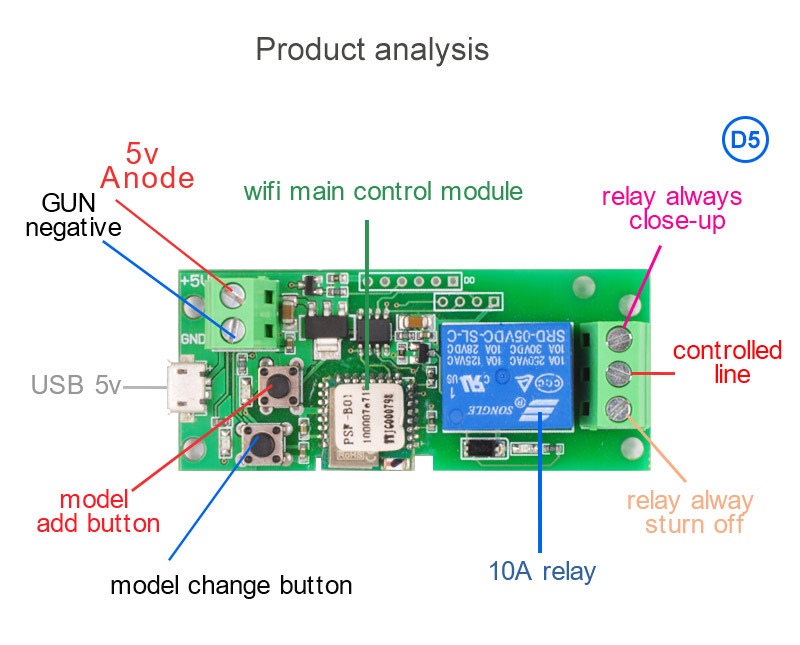

2. Press the inching self-locking selection button, the status light will be on, and it is self-locking at this time. Press the phone to open the relay, and press the button to close the relay.

Packing list:

Jog self-locking * 1/* 2
